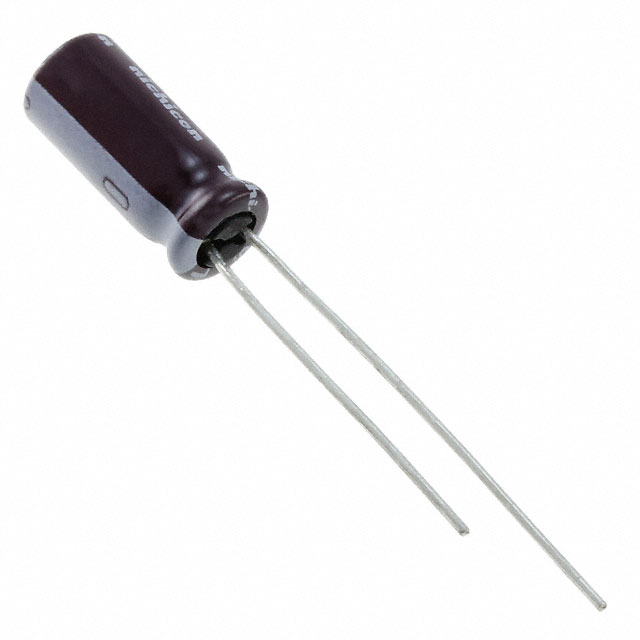

| Part number: | ULD1J100MDD |
| Description: | CAP ALUM 10UF 20% 63V RADIAL |
| Manufacturer | Nichicon |
| Encapsulation | Bulk |
| Quantity | 6000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.079" (2.00mm) |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Capacitance | 10 µF |
| Voltage - Rated | 63 V |
| Ripple Current @ Low Frequency | 33.6 mA @ 120 Hz |
| Ripple Current @ High Frequency | 80 mA @ 100 kHz |
|
