| Part number: | LKG1C472MESCCK |

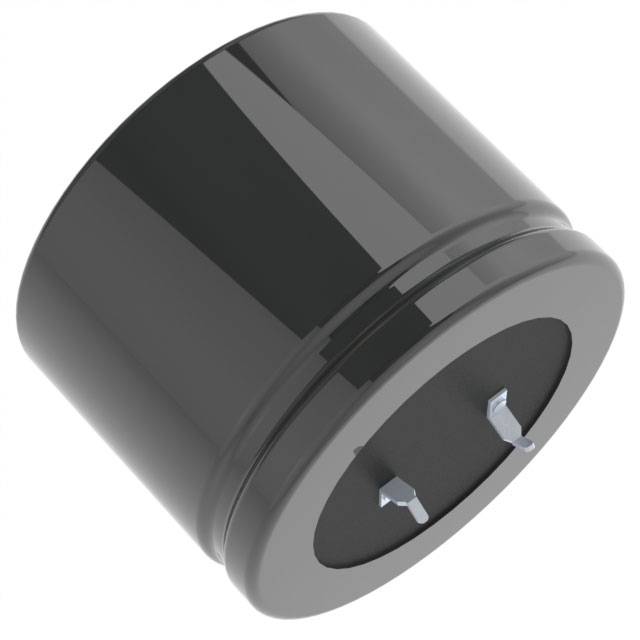

| Description: | CAP ALUM 4700UF 20% 16V SNAP |
| Manufacturer | Nichicon |
| Encapsulation | Bulk |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Audio |
| Lead Spacing | 0.394" (10.00mm) |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Capacitance | 4700 µF |
| Voltage - Rated | 16 V |
| Ripple Current @ Low Frequency | 2.6 A @ 120 Hz |
|
