| Part number: | LKG1C392MESYCK |

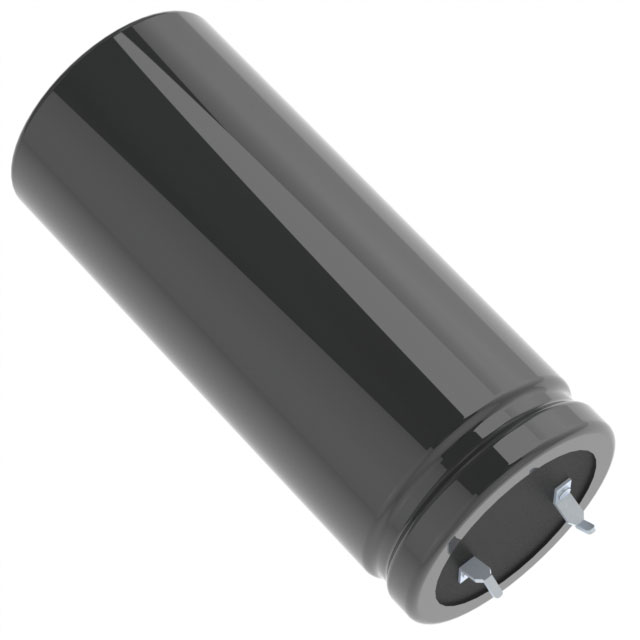

| Description: | CAP ALUM 3900UF 20% 16V SNAP |
| Manufacturer | Nichicon |
| Encapsulation | Bulk |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Audio |
| Lead Spacing | 0.394" (10.00mm) |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Capacitance | 3900 µF |
| Voltage - Rated | 16 V |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
|
