| Part number: | IXRFSM12N100 |
| Description: | MOSFET N-CH 1000V 12A 16SMPD |
| Manufacturer | IXYS-RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IXYS-RF" |

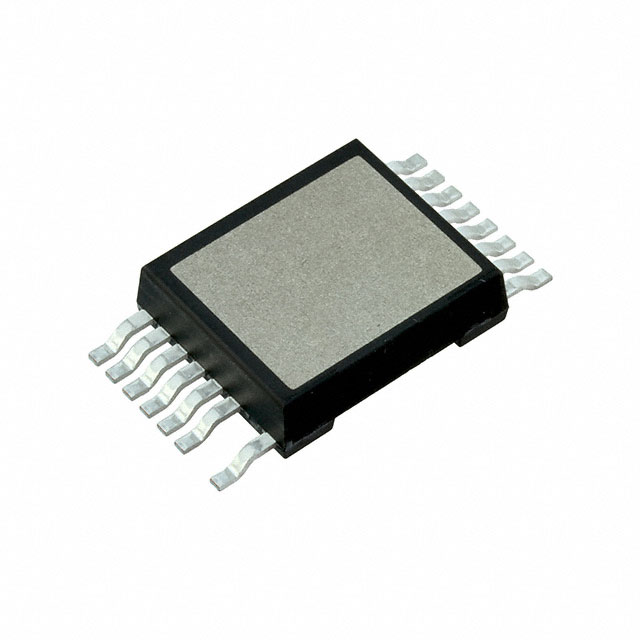

| Package / Case | 16-BESOP (0.790", 20.11mm Width), 15 Leads, Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.05Ohm @ 6A, 15V |
| Power Dissipation (Max) | 940W |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA |
| Supplier Device Package | 16-SMPD |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 1000 V |
| Gate Charge (Qg) (Max) @ Vgs | 77 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2875 pF @ 800 V |
|
