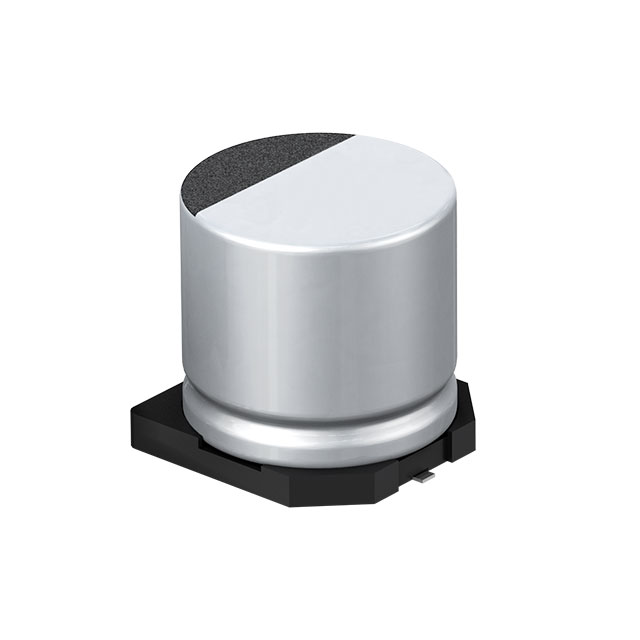

| Part number: | EEE-FK0J151SR |
| Description: | CAP ALUM 150UF 20% 6.3V SMD |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 700mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Capacitance | 150 µF |
| Voltage - Rated | 6.3 V |
| Ripple Current @ Low Frequency | 104 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
|
