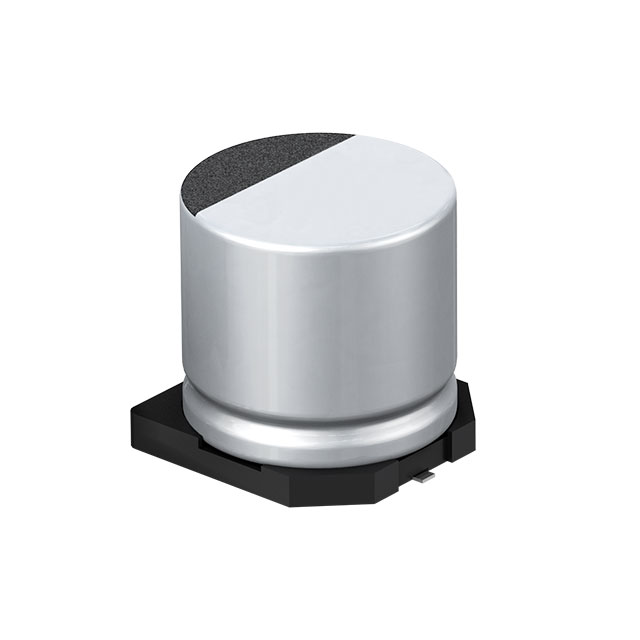

| Part number: | EEE-FK1V180SR |
| Description: | CAP ALUM 18UF 20% 35V SMD |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 1.35Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Capacitance | 18 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 58.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
|
