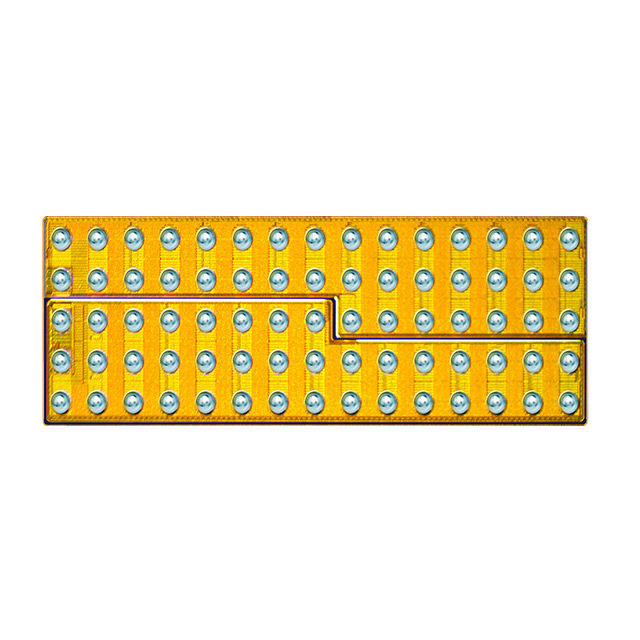

| Part number: | EPC2102 |
| Description: | GANFET 2N-CH 60V 23A DIE |
| Manufacturer | EPC |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "EPC" |
| Package / Case | Die |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Half Bridge) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 23A |
| Input Capacitance (Ciss) (Max) @ Vds | 830pF @ 30V |
| Rds On (Max) @ Id, Vgs | 4.4mOhm @ 20A, 5V |
| Gate Charge (Qg) (Max) @ Vgs | 6.8nC @ 5V |
| Vgs(th) (Max) @ Id | 2.5V @ 7mA |
| Supplier Device Package | Die |
|
