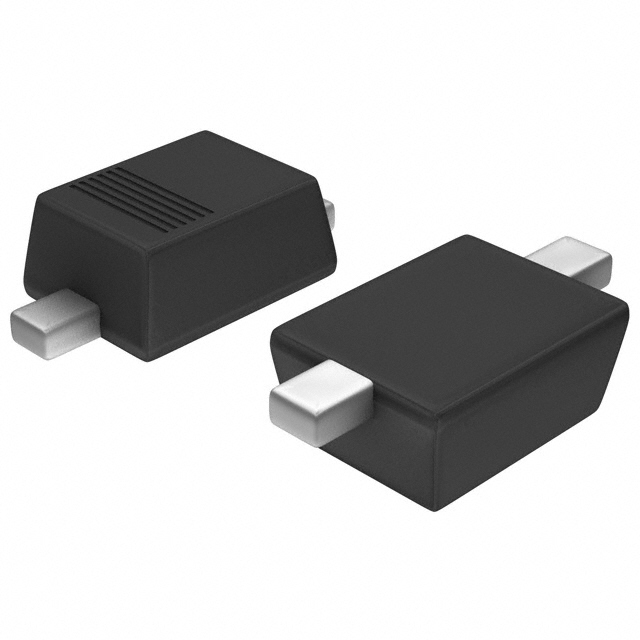

| Part number: | BAT46WJ/DG/B2,115 |
| Description: | DIODE SCHOTT 100V 250MA SOD323F |
| Manufacturer | Nexperia |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nexperia" |
| Package / Case | SC-90, SOD-323F |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 5.9 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 39pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 250mA |
| Supplier Device Package | SOD-323F |
| Operating Temperature - Junction | 150°C (Max) |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 250 mA |
| Current - Reverse Leakage @ Vr | 9 µA @ 100 V |
| Qualification | AEC-Q101 |
|
