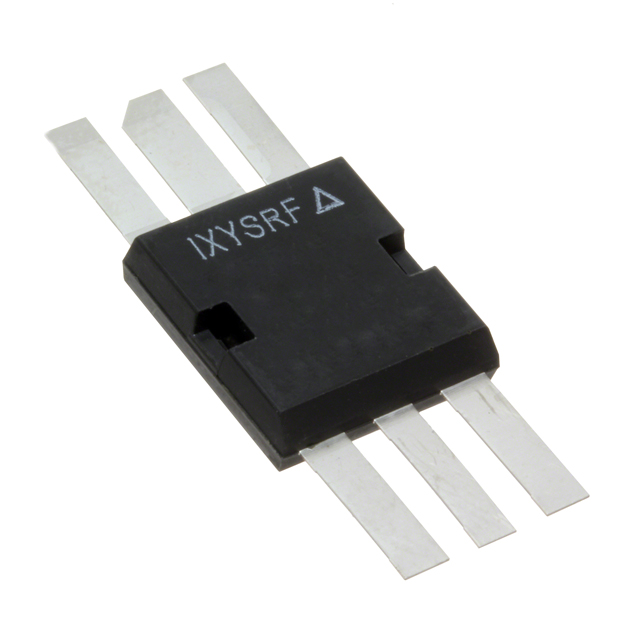

| Part number: | SS150TI60110 |
| Description: | DIODE ARR SIC SCHOT 600V DE150 |
| Manufacturer | IXYS-RF |
| Encapsulation | Tube |
| Quantity | 40 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IXYS-RF" |
| Package / Case | 6-SMD, Flat Lead Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Diode Configuration | 3 Independent |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Supplier Device Package | DE150 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 5 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 600 V |
|
