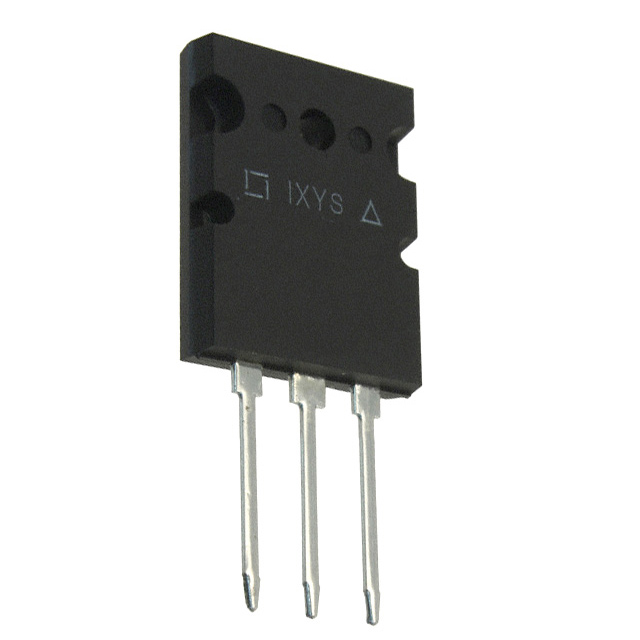

| Part number: | IXFK44N50F |
| Description: | MOSFET N-CH 500V 44A TO264 |
| Manufacturer | IXYS-RF |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IXYS-RF" |
| Package / Case | TO-264-3, TO-264AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 44A (Tc) |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 22A, 10V |
| Power Dissipation (Max) | 500W (Tc) |
| Vgs(th) (Max) @ Id | 5.5V @ 4mA |
| Supplier Device Package | TO-264AA |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 500 V |
| Gate Charge (Qg) (Max) @ Vgs | 156 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5500 pF @ 25 V |
|
