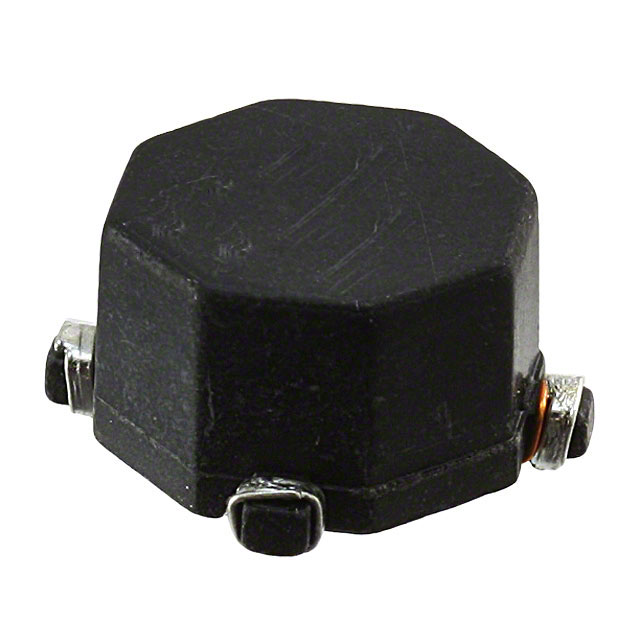

| Part number: | CTX10-2A-R |
| Description: | INDUCT ARRAY 2 COIL 11.38UH SMD |
| Manufacturer | PowerStor (Eaton) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 800 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "PowerStor (Eaton)" |
| Tolerance | ±25% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 85°C |
| Height | 0.235" (5.97mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 45.5 µH |
| Inductance - Connected In Parallel | 11.38 µH |
| Current Rating - Parallel | 2.89 A |
| Current Rating - Series | 1.45 A |
| Current Saturation - Parallel | 3.13 A |
| Current Saturation - Series | 1.56 A |
| DC Resistance (DCR) - Parallel | 47mOhm Max |
| DC Resistance (DCR) - Series | 188mOhm Max |
|
