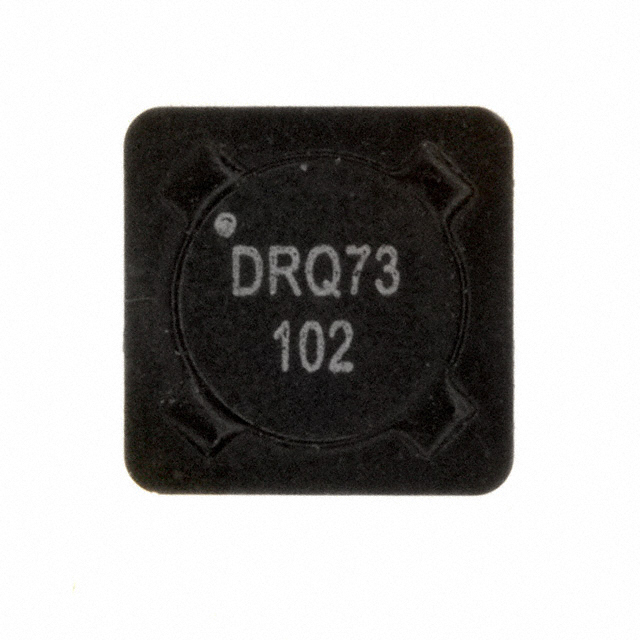

| Part number: | DRQ73-102-R |
| Description: | INDUCT ARRAY 2 COIL 995UH SMD |
| Manufacturer | PowerStor (Eaton) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1350 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PowerStor (Eaton)" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Height | 0.140" (3.55mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 3.98 mH |
| Inductance - Connected In Parallel | 995 µH |
| Current Rating - Parallel | 260 mA |
| Current Rating - Series | 128 mA |
| Current Saturation - Parallel | 250 mA |
| Current Saturation - Series | 130 mA |
| DC Resistance (DCR) - Parallel | 4.34Ohm |
| DC Resistance (DCR) - Series | 17.36Ohm |
|
