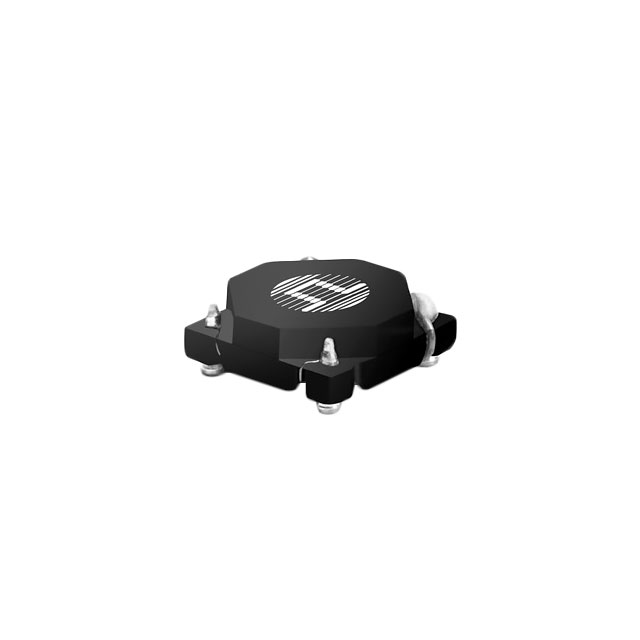

| Part number: | PA0368.100NL |
| Description: | CURR SENSE XFMR 1:100 4A SMD |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Size / Dimension | 0.285" L x 0.352" W (7.25mm x 8.25mm) |
| Mounting Type | Surface Mount |
| Type | Invasive |
| DC Resistance (DCR) | 4mOhm Primary, 1.6Ohm Secondary |
| Turns Ratio - Primary:Secondary | 1:100 |
| Frequency Range | 50kHz ~ 1MHz |
| Height - Seated (Max) | 0.124" (3.15mm) |
| Inductance | 6.7 mH |
| Current Rating (Amps) | 4 A |
|
