| Part number: | IX2120BTR |
| Description: | IC GATE DRVR HALF-BRIDGE 28SOIC |
| Manufacturer | IXYS Integrated Circuits Division |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IXYS Integrated Circuits Division" |

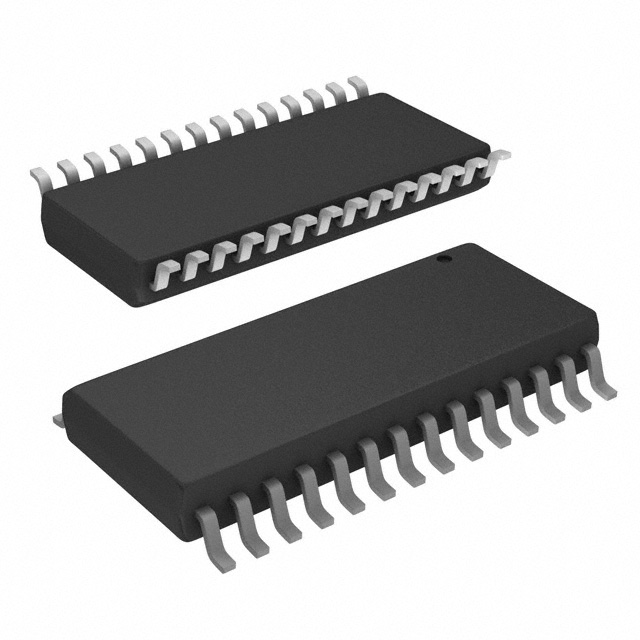

| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 15V ~ 20V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 1200 V |
| Supplier Device Package | 28-SOIC |
| Rise / Fall Time (Typ) | 9.4ns, 9.7ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| DigiKey Programmable | Not Verified |
|
