| Part number: | MAL210656472E3 |

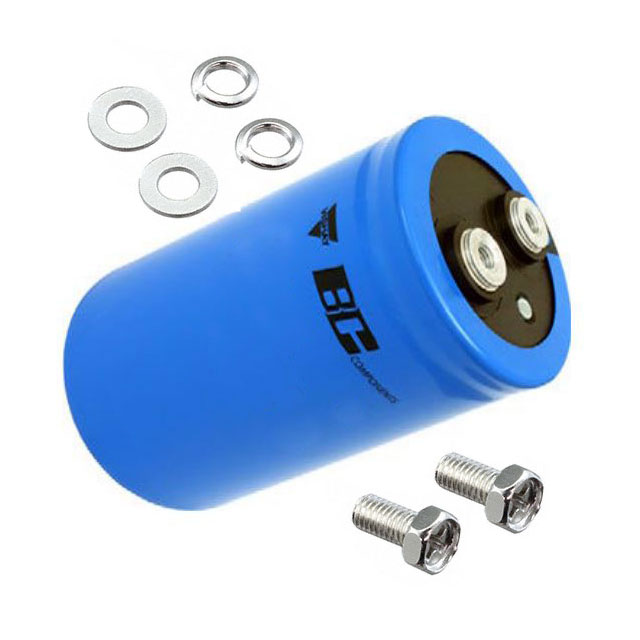

| Description: | CAP ALUM 4700UF 25V SCREW |
| Manufacturer | Vishay BC Components |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay BC Components" |
| Tolerance | -10%, +30% |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.504" (12.80mm) |
| ESR (Equivalent Series Resistance) | 70mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Height - Seated (Max) | 2.744" (69.70mm) |
| Capacitance | 4700 µF |
| Voltage - Rated | 25 V |
| Impedance | 50 mOhms |
| Ripple Current @ Low Frequency | 5.8 A @ 100 Hz |
|
