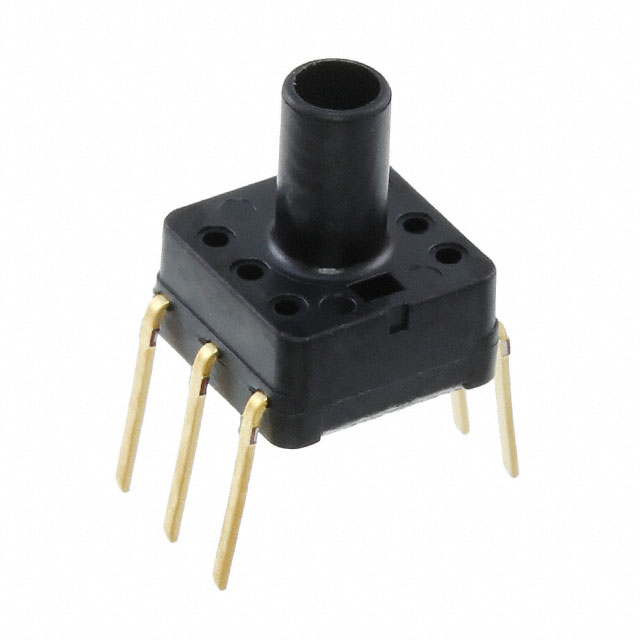

| Part number: | ADP5161 |
| Description: | SENSOR 72.52PSIG 0.12" 4.5V |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Box |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Features | Amplified Output, Temperature Compensated |
| Package / Case | 6-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0 V ~ 4.5 V |
| Operating Pressure | 72.52PSI (500kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1.25% |
| Operating Temperature | -10°C ~ 60°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.12" (3mm) Tube |
| Applications | Board Mount |
| Port Style | Barbless |
| Maximum Pressure | 145.04PSI (1000kPa) |
|
