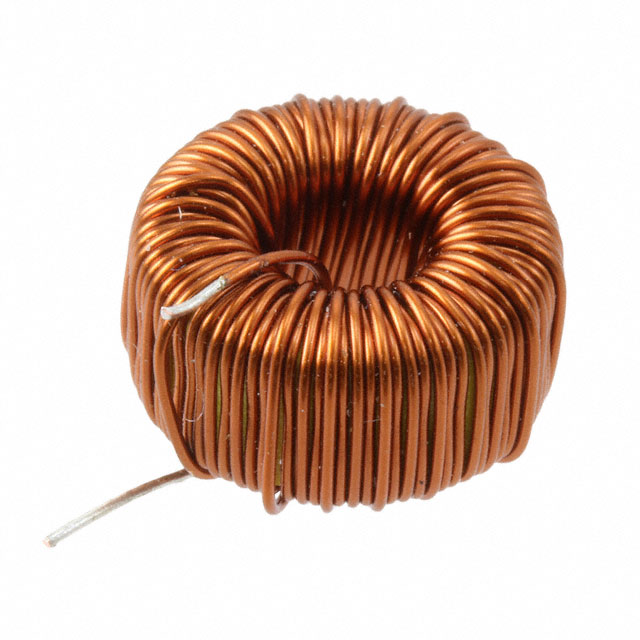

| Part number: | DPO-0.5-330 |
| Description: | FIXED IND 330UH 500MA 265MOHM TH |
| Manufacturer | Talema |
| Encapsulation | Tray |
| Quantity | 1500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Talema" |
| Package / Case | Radial, Vertical (Open) |
| Size / Dimension | 0.591" Dia x 0.354" W (15.00mm x 9.00mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 265mOhm Max |
| Inductance Frequency - Test | 10 kHz |
| Inductance | 330 µH |
| Current Rating (Amps) | 500 mA |
|
