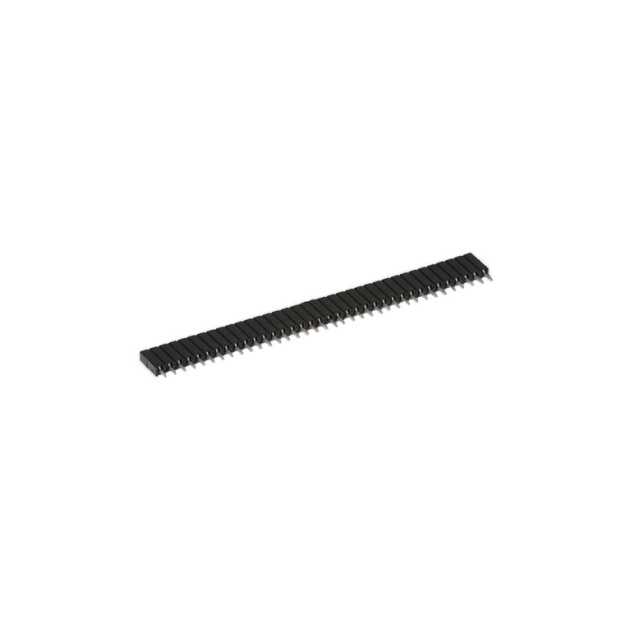

| Part number: | 929974-01-36 |
| Description: | CONN RCPT 36POS 0.1 TIN-LEAD PCB |
| Manufacturer | 3M |
| Encapsulation | Bulk |
| Quantity | 324 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Connector Type | Receptacle |
| Voltage Rating | 1500V |
| Current Rating (Amps) | 2A |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Shape | Square |
| Contact Length - Post | 0.125" (3.18mm) |
| Insulation Height | 0.325" (8.25mm) |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Number of Rows | 1 |
|
