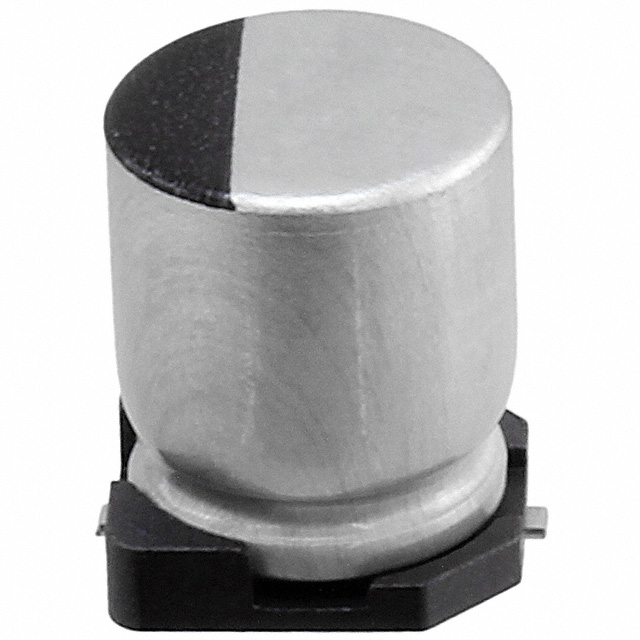

| Part number: | 10TXV220M6.3X8 |
| Description: | CAP ALUM 220UF 20% 10V SMD |
| Manufacturer | Rubycon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 900 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rubycon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 700mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Capacitance | 220 µF |
| Voltage - Rated | 10 V |
| Ripple Current @ Low Frequency | 66 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110 mA @ 100 kHz |
|
