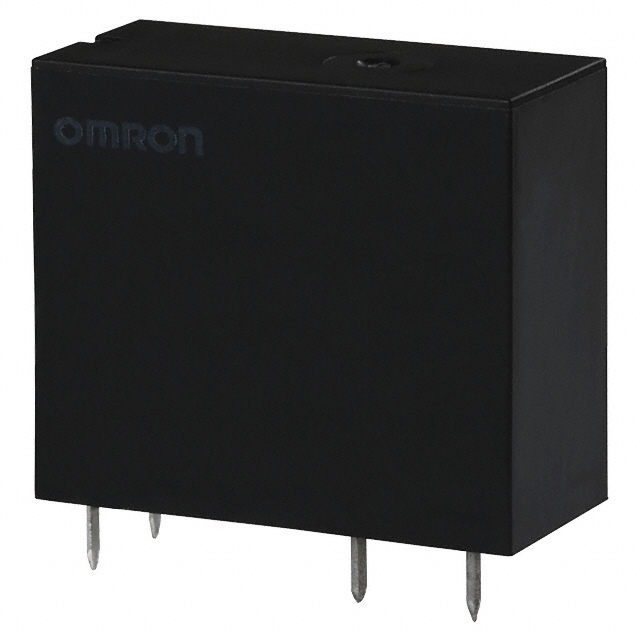

| Part number: | G2R-14 DC12 BY OMI |
| Description: | RELAY GEN PURPOSE SPDT 8A 12V |
| Manufacturer | Omron Electronic Components |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Omron Electronic Components" |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | PC Pin |
| Approval Agency | CSA, TUV, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 43.6 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Alloy |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Must Release Voltage | 1.8 VDC |
| Must Operate Voltage | 8.4 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Coil Resistance | 275 Ohms |
| Load - Max Switching | 3040VA, 1000W |
|
