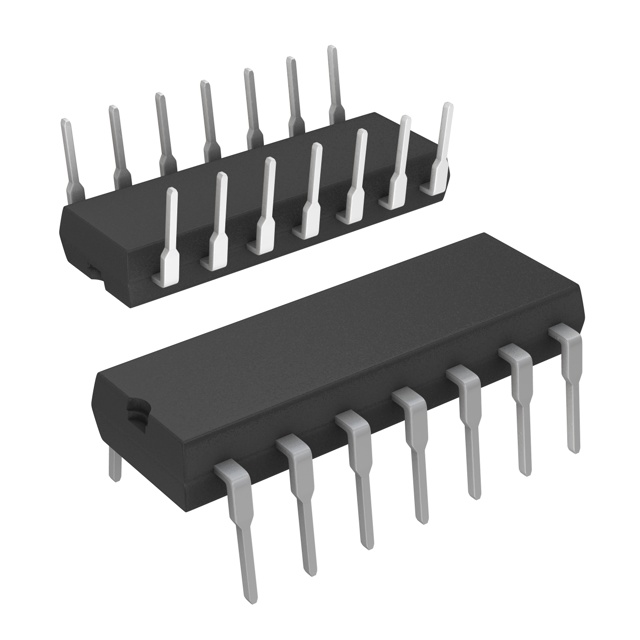

| Part number: | DM74LS86N |
| Description: | IC GATE XOR 4CH 2-INP 14MDIP |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | XOR (Exclusive OR) |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Output High, Low | 400µA, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-MDIP |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.8V |
| Max Propagation Delay @ V, Max CL | 23ns @ 5V, 50pF |
| Number of Circuits | 4 |
|
