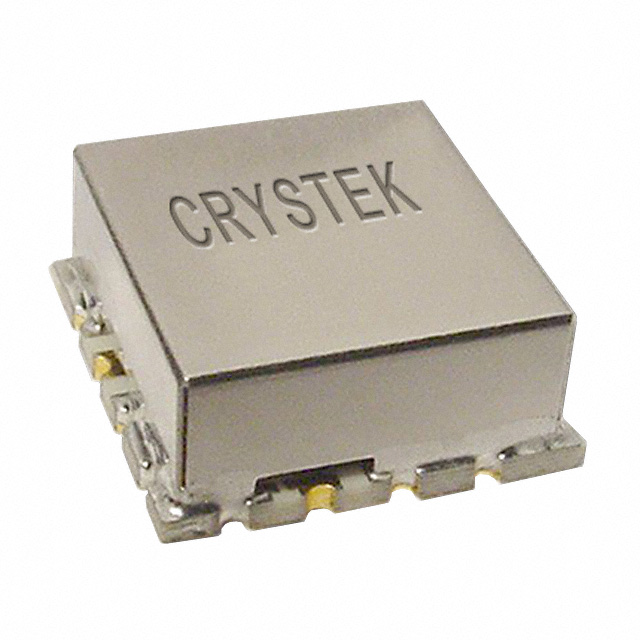

| Part number: | CVCO55CC-2895-3035 |
| Description: | VCO 2965MHZ 0.5-15V 12.7X12.7MM |
| Manufacturer | Crystek Corporation |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Crystek Corporation" |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 8V |
| Height | 0.220" (5.59mm) |
| Frequency Range | 2895 ~ 3035MHz |
| 2nd Harmonic, Typ (dBc) | -15 |
| Frequency - Center | 2965MHz |
| Icc Max | 40mA |
| Pushing (MHz/V) | 1 |
| Phase Noise Typ (dBc/Hz) | -108 |
| Power (dBm) | 4 ±2 |
| Tuning Voltage (VDC) | 0.5 V ~ 15 V |
|
