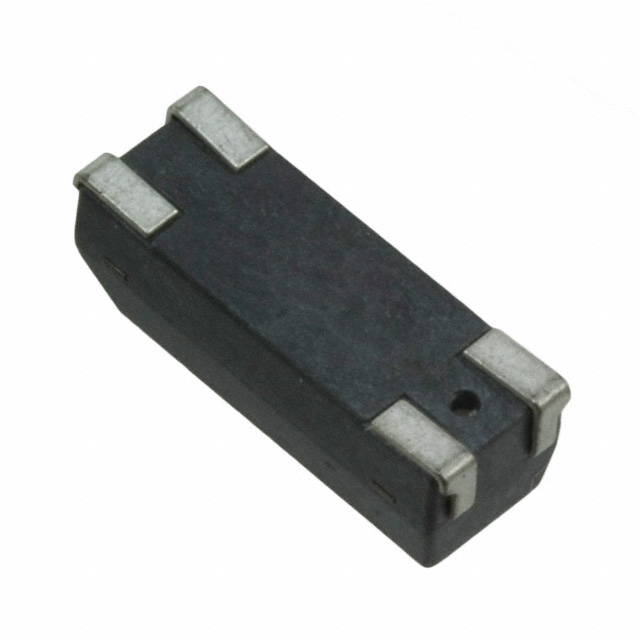

| Part number: | CM309A9.8304MABJT |
| Description: | CRYSTAL 9.8304 MHZ 18PF SMD |
| Manufacturer | Citizen Finedevice Co., LTD. |
| Encapsulation | Cut Tape (CT) |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Citizen Finedevice Co., LTD." |
| Package / Case | 2-SOJ, 2.85mm pitch |
| Load Capacitance | 18pF |
| Size / Dimension | 0.528" L x 0.200" W (13.40mm x 5.08mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -10°C ~ 60°C |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 0.181" (4.60mm) |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 9.8304 MHz |
|
