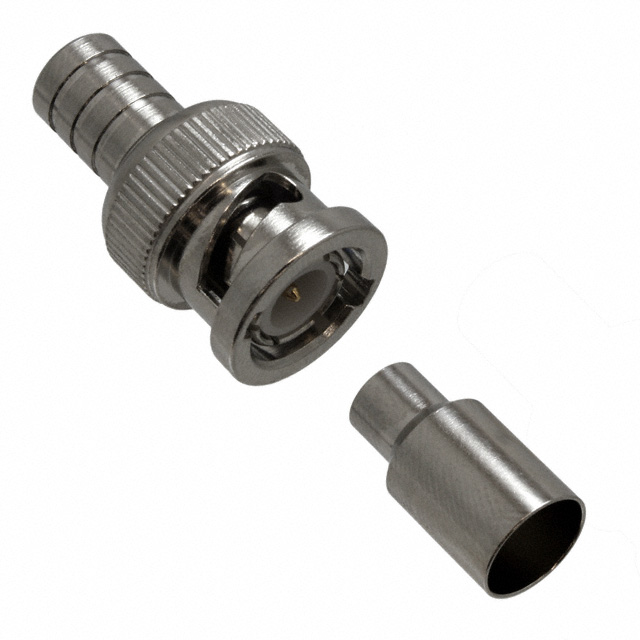

| Part number: | 031-5557-RFX |
| Description: | CONN BNC PLUG STR 50 OHM PUSH |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Plug, Male Pin |
| Contact Termination | Push On |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Operating Temperature | -65°C ~ 165°C |
| Insertion Loss | 0.2dB |
| Fastening Type | Bayonet Lock |
| Includes | 2 pcs - 1 Connector, 1 Ferrule |
| Connector Style | BNC |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Voltage Rating | 500 V |
|
