| Part number: | 122163 |
| Description: | CONN TNC JACK STR 75 OHM CRIMP |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209 |
| Insertion Loss | 0.18dB |
| Fastening Type | Threaded |

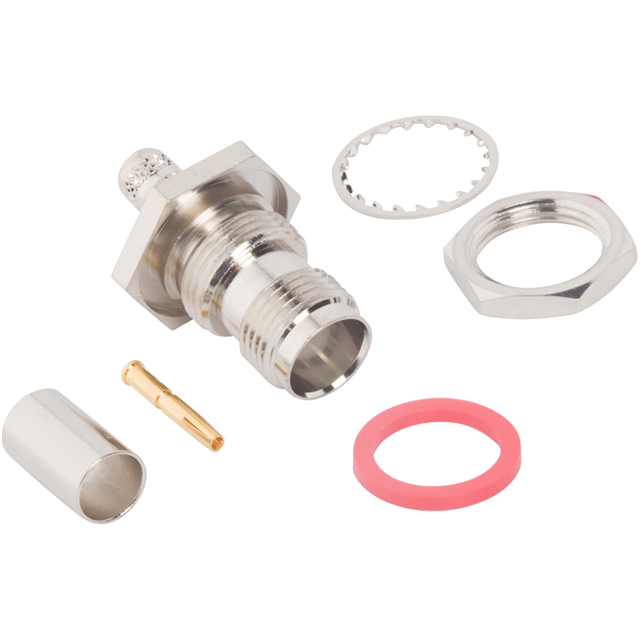

| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut |
| Connector Style | TNC |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Shield Termination | Crimp |
| Center Contact Material | Phosphor Bronze |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 1 GHz |
| Number of Ports | 1 |
| Voltage Rating | 500 V |
|
