| Part number: | 172143-10 |
| Description: | CONN N JACK STR 50 OHM SOLDER |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Operating Temperature | -65°C ~ 165°C |
| Insertion Loss | 0.15dB |
| Fastening Type | Threaded |

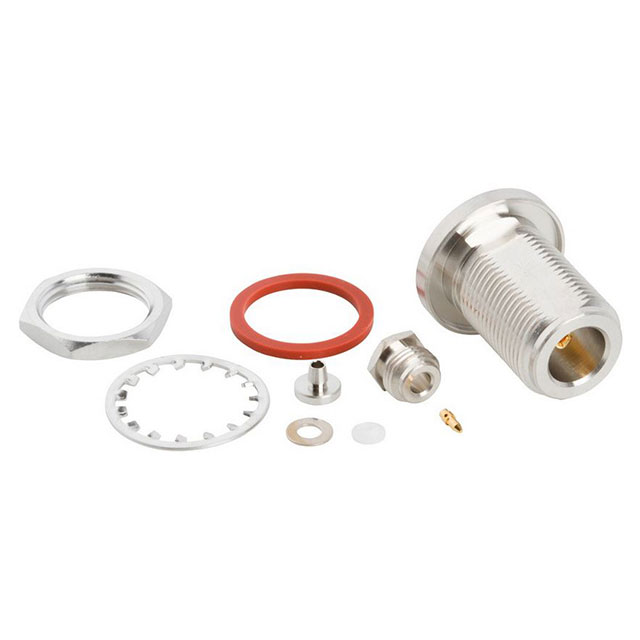

| Includes | 9 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut, 1 Rear Body, 1 Washer |
| Ingress Protection | Weatherproof |
| Connector Style | N Type |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Shield Termination | Clamp |
| Center Contact Material | Beryllium Copper; Brass |
| Body Finish | White Bronze |
| Center Contact Plating | Gold |
| Frequency - Max | 3 GHz |
| Number of Ports | 1 |
| Voltage Rating | 1500 V |
|
