| Part number: | 1894833 |

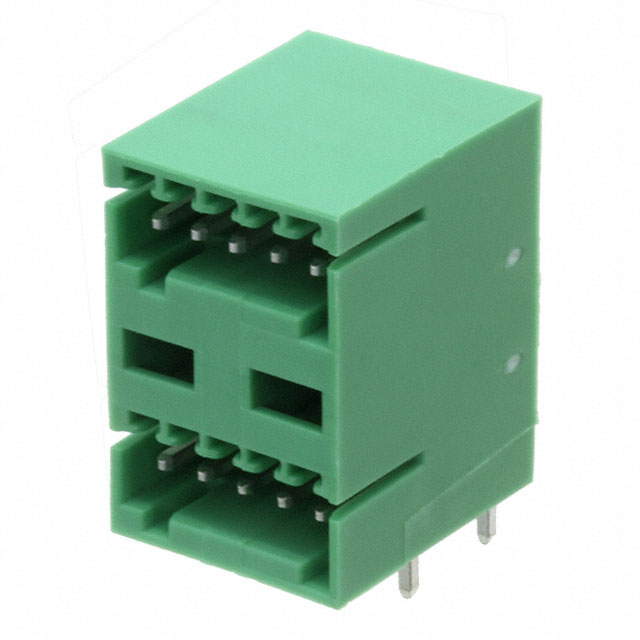

| Description: | TERM BLOCK HDR 10POS 90DEG 2.5MM |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Color | Green |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Pitch | 0.098" (2.50mm) |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Termination Style | Solder |
| Material Flammability Rating | UL94 V-0 |
| Current - IEC | 4A |
| Number of Levels | 2 |
| Positions Per Level | 5 |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.150" (3.81mm) |
| Insulation Height | 0.862" (21.89mm) |
| Current - UL | 4 A |
| Voltage - IEC | 320 V |
| Voltage - UL | 125 V |
|
