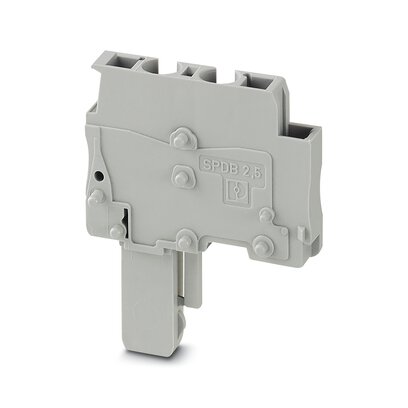

| Part number: | 3043255 |
| Description: | TERM BLOCK PLUG 1/2POS STR |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 (Mate), 2 (Input) |
| Type | Plug, Female Sockets |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Material Flammability Rating | UL94 V-0 |
| Current - IEC | 24A |
| Number of Levels | 1 (Mate), 2 (Input) |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Positions Per Level | 1 |
| Plug Wire Entry | 180° |
| Housing Material | Polyamide (PA), Nylon |
| Wire Strip Length | 10mm |
| Insulation Height | 1.535" (39.00mm) |
| Current - UL | 20 A |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
|
