| Part number: | 364A795 |

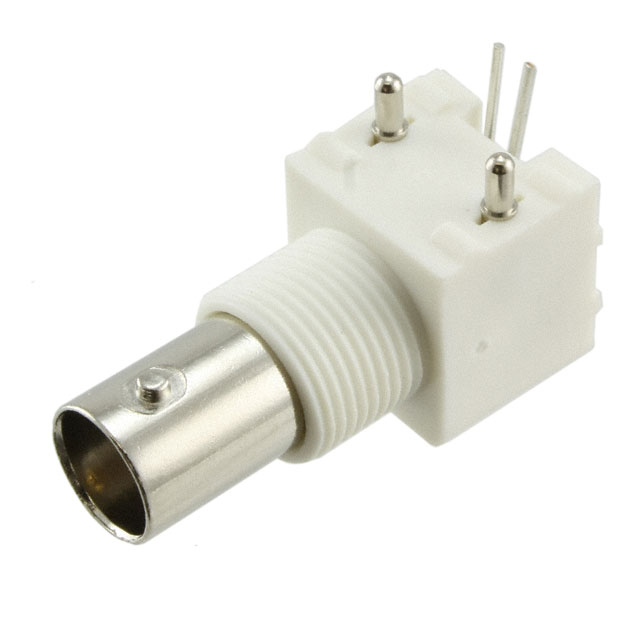

| Description: | CONN BNC JACK R/A 75 OHM PCB |
| Manufacturer | Winchester Electronics |
| Encapsulation | Tray |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Winchester Electronics" |
| Features | Board Guide, Isolated |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Operating Temperature | -40°C ~ 165°C |
| Insertion Loss | 0.2dB |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Weatherproof |
| Connector Style | BNC |
| Dielectric Material | Polypropylene (PP) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Body Material | Brass |
| Housing Color | Silver, White |
| Mating Cycles | 500 |
| Shield Termination | Solder |
| Center Contact Material | Phosphor Bronze |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 1 GHz |
| Number of Ports | 1 |
| Voltage Rating | 500 V |
|
