| Part number: | DG2739DN-T1-E4 |
| Description: | IC SW SPST-NO/NCX2 8OHM 8MINIQFN |
| Manufacturer | Vishay / Siliconix |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 6000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Siliconix" |

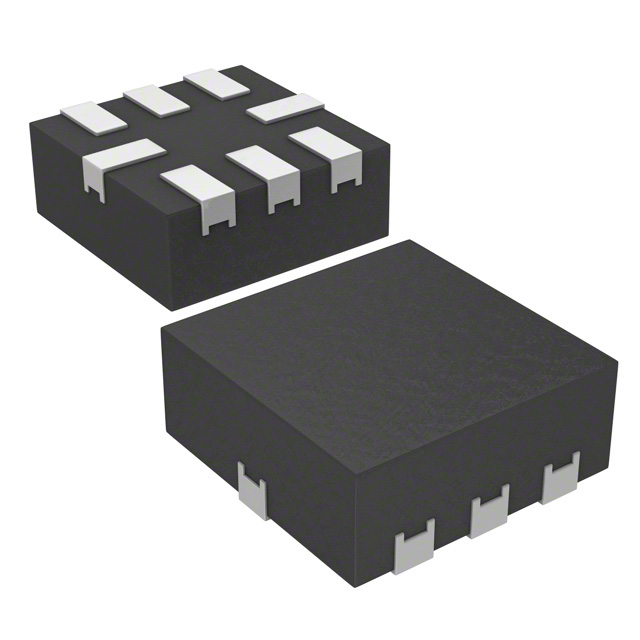

| Package / Case | 8-UFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 8Ohm |
| -3db Bandwidth | 720MHz |
| Supplier Device Package | 8-miniQFN (1.4x1.4) |
| Voltage - Supply, Single (V+) | 2.3V ~ 4.3V |
| Charge Injection | 10.4pC |
| Crosstalk | -109dB @ 1MHz |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | 60ns, 50ns |
| Channel Capacitance (CS(off), CD(off)) | 4.4pF, 3.8pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Number of Circuits | 2 |
|
