| Part number: | DMN3401LV-7 |
| Description: | MOSFET BVDSS: 25V~30V SOT563 T&R |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |

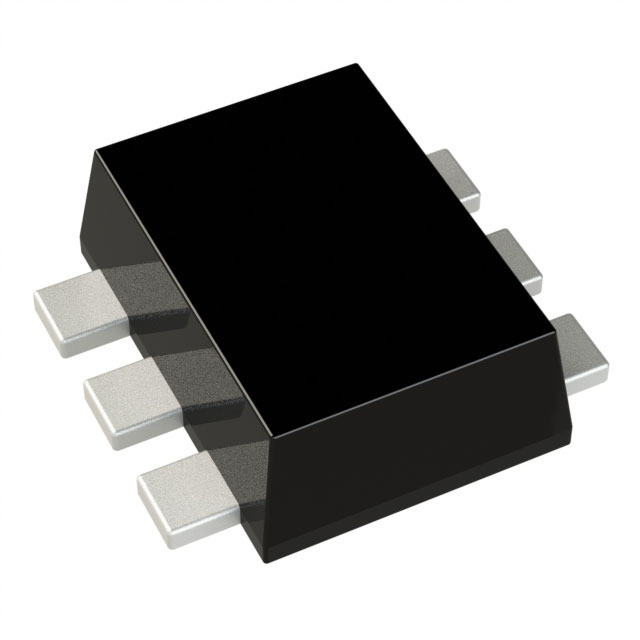

| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 490mW (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 800mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 15V |
| Rds On (Max) @ Id, Vgs | 400mOhm @ 590mA, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 1.2nC @ 10V |
| Vgs(th) (Max) @ Id | 1.6V @ 100µA |
| Supplier Device Package | SOT-563 |
|
