| Part number: | EKXN401ELL221ML50S |

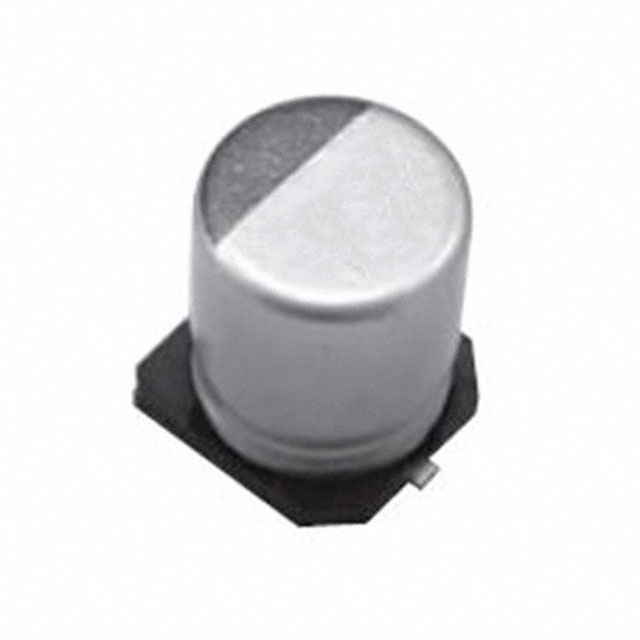

| Description: | ALUMINUM CAPACITOR |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.295" (7.50mm) |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Capacitance | 220 µF |
| Voltage - Rated | 400 V |
| Ripple Current @ Low Frequency | 1.29 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9025 A @ 100 kHz |
|
