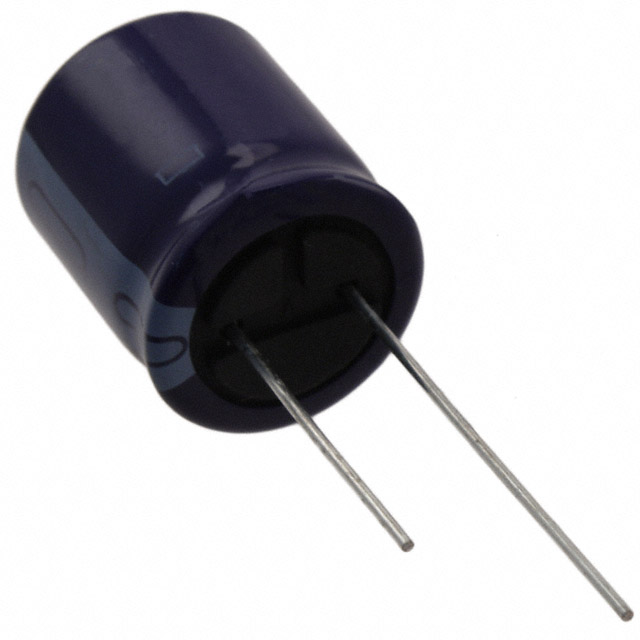

| Part number: | ELXZ350ELL222ML25S |
| Description: | ALUMINUM CAPACITOR |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive |
| Lead Spacing | 0.295" (7.50mm) |
| Ratings | AEC-Q200 |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Capacitance | 2.2 mF |
| Voltage - Rated | 35 V |
| Impedance | 22 mOhms |
| Ripple Current @ Low Frequency | 1.92 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.56 A @ 100 kHz |
|
