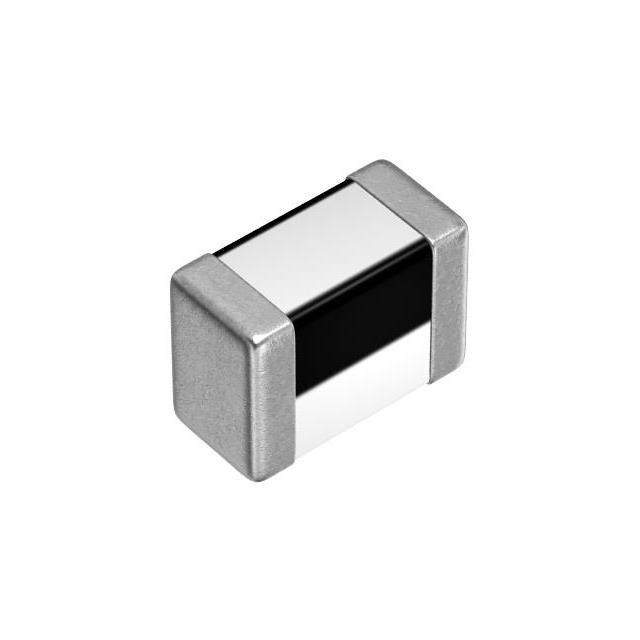

| Part number: | MHQ1005075HA4N2BTD25 |
| Description: | FIXED IND 4.2NH 0.65A 120 MOHM S |
| Manufacturer | TDK Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 8000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK Corporation" |
| Tolerance | ±0.1nH |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Multilayer |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | 20 @ 250MHz |
| Frequency - Self Resonant | 5GHz |
| Ratings | AEC-Q200 |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.030" (0.75mm) |
| Inductance | 4.2 nH |
| Current Rating (Amps) | 650 mA |
|
