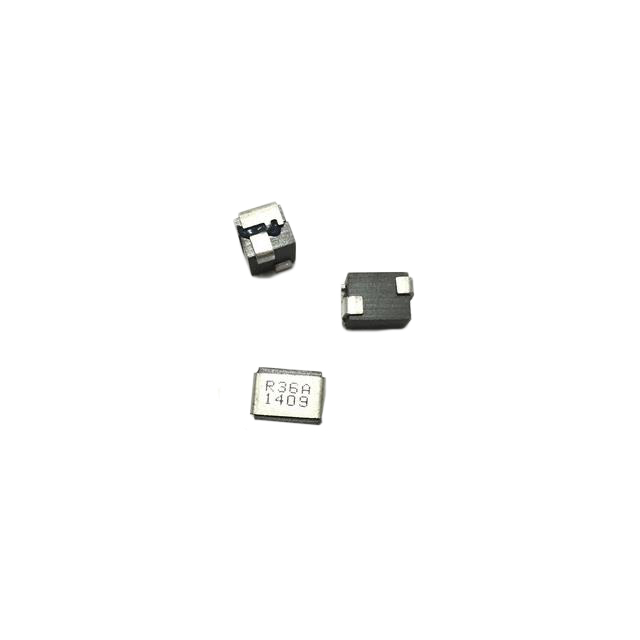

| Part number: | SLM40327A-R22MHF-CT |
| Description: | 0.22uH, 20%, 0.85mOhm, 70Amp Max |
| Manufacturer | ITG Electronics, Inc. |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ITG Electronics, Inc." |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.394" L x 0.276" W (10.00mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 130°C |
| DC Resistance (DCR) | 0.85mOhm |
| Current - Saturation (Isat) | 70A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Inductance | 220 nH |
| Current Rating (Amps) | 30 A |
|
