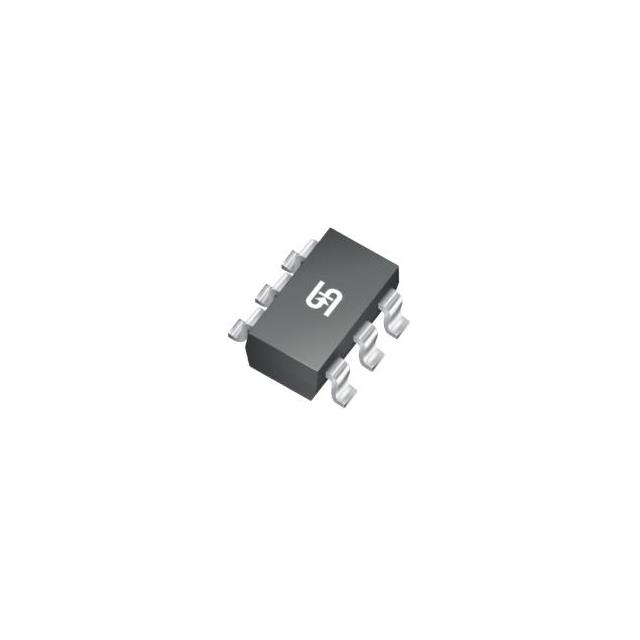

| Part number: | BAT54AD RFG |
| Description: | SOT-363, 30V, 0.2A, SCHOTTKY DIO |
| Manufacturer | TSC (Taiwan Semiconductor) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TSC (Taiwan Semiconductor)" |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | SOT-363 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
|
