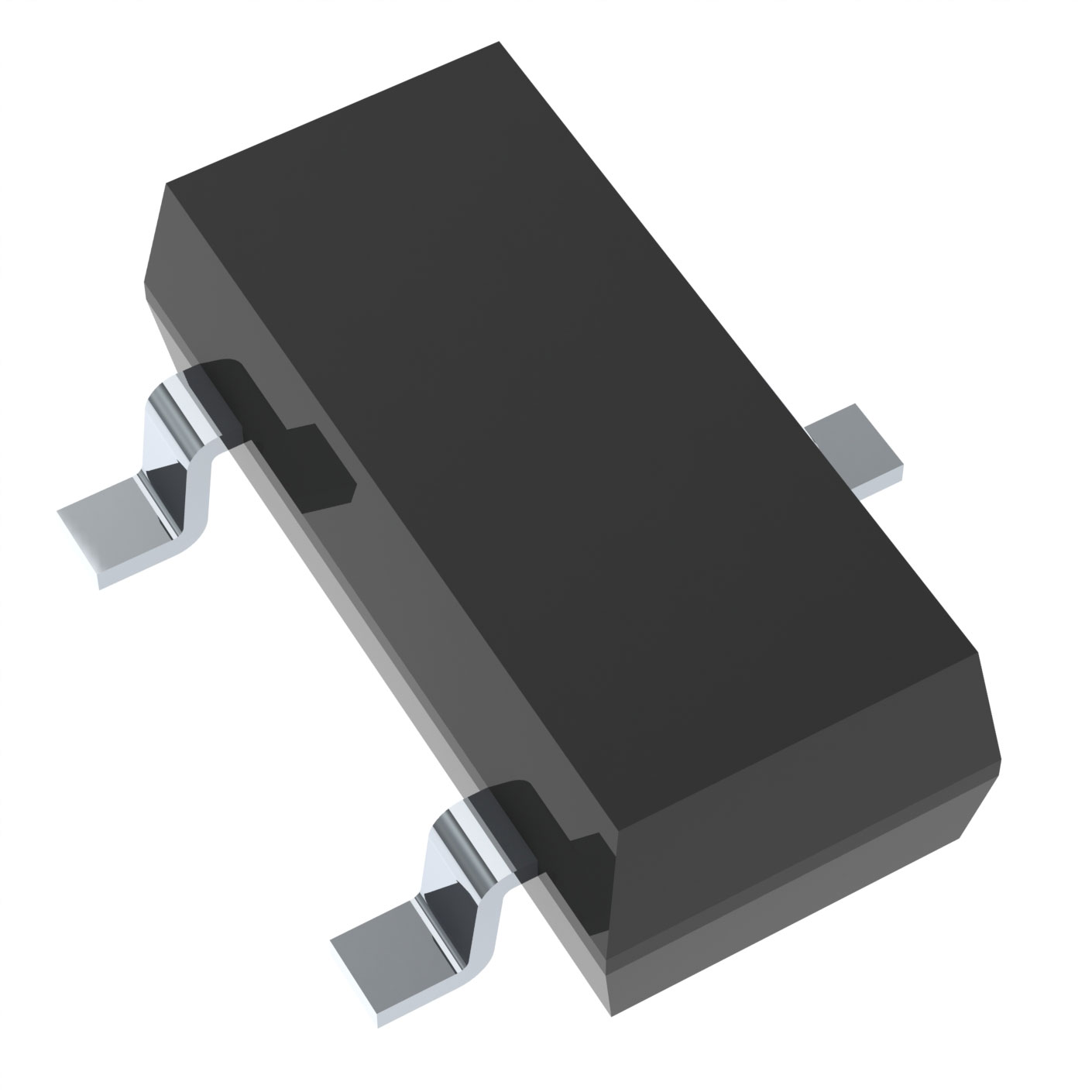

| Part number: | BAS16 R5G |
| Description: | SOT-23, 75V, 0.15A, SWITCHING DI |
| Manufacturer | TSC (Taiwan Semiconductor) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 10000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TSC (Taiwan Semiconductor)" |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 150mA |
| Supplier Device Package | SOT-23 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 75 V |
|
