| Part number: | 24M394J |

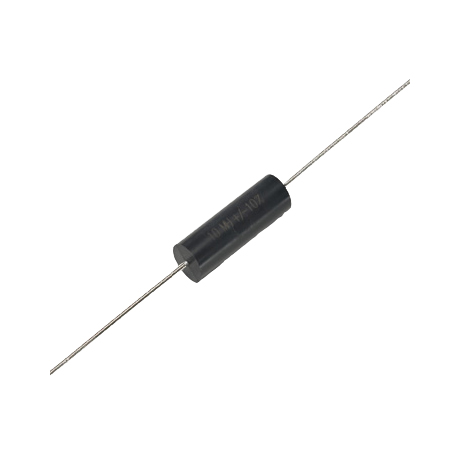

| Description: | MOLDED AXL UNSHIELDED RF COILS |
| Manufacturer | Gowanda |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Gowanda" |
| Tolerance | ±5% |
| Package / Case | Axial |
| Size / Dimension | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 105°C |
| DC Resistance (DCR) | 44Ohm Max |
| Q @ Freq | 80 @ 250kHz |
| Frequency - Self Resonant | 1.45MHz |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 250 kHz |
| Supplier Device Package | Axial |
| Inductance | 3.9 mH |
| Current Rating (Amps) | 61 mA |
|
