| Part number: | 059AT1002HLF |

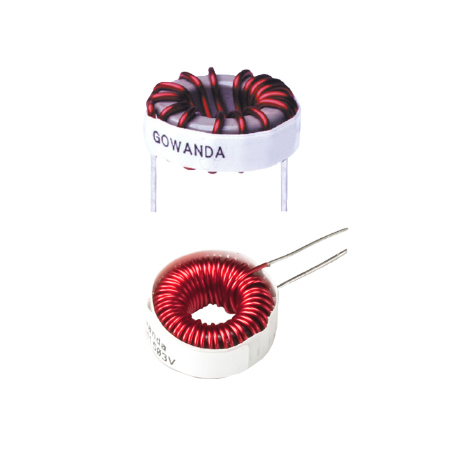

| Description: | HORIZONTAL TOROIDAL INDUCTOR |
| Manufacturer | Gowanda |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Gowanda" |
| Tolerance | ±10% |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Size / Dimension | 1.100" Dia (27.94mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -55°C ~ 130°C |
| DC Resistance (DCR) | 8mOhm Max |
| Frequency - Self Resonant | 20MHz |
| Current - Saturation (Isat) | 20A |
| Inductance Frequency - Test | 1 kHz |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 0.475" (12.06mm) |
| Inductance | 10 µH |
| Current Rating (Amps) | 14.5 A |
|
