| Part number: | 17S682M |

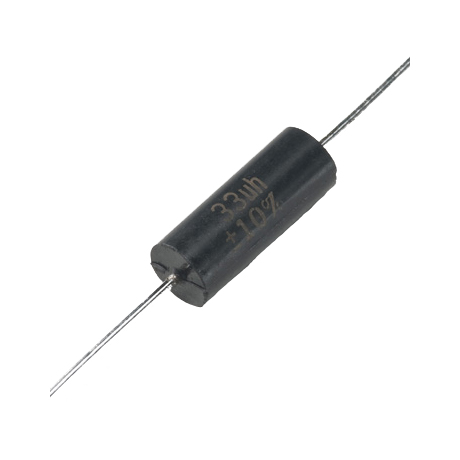

| Description: | MOLDED SHIELDED RF COILS AXIAL |
| Manufacturer | Gowanda |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Gowanda" |
| Tolerance | ±20% |
| Package / Case | Axial |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 105°C |
| DC Resistance (DCR) | 2.7Ohm Max |
| Q @ Freq | 50 @ 2.5MHz |
| Frequency - Self Resonant | 21MHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 2.5 MHz |
| Supplier Device Package | Axial |
| Inductance | 68 µH |
| Current Rating (Amps) | 170 mA |
|
