| Part number: | 8M223MLF |

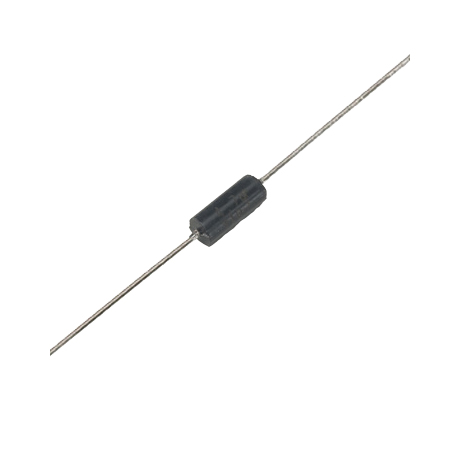

| Description: | MOLDED AXL UNSHIELDED RF COILS |
| Manufacturer | Gowanda |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Gowanda" |
| Tolerance | ±20% |
| Package / Case | Axial |
| Size / Dimension | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 105°C |
| DC Resistance (DCR) | 26.5Ohm Max |
| Q @ Freq | 35 @ 790kHz |
| Frequency - Self Resonant | 7.1MHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 790 kHz |
| Supplier Device Package | Axial |
| Inductance | 220 µH |
| Current Rating (Amps) | 42.5 mA |
|
