| Part number: | 10M183K |

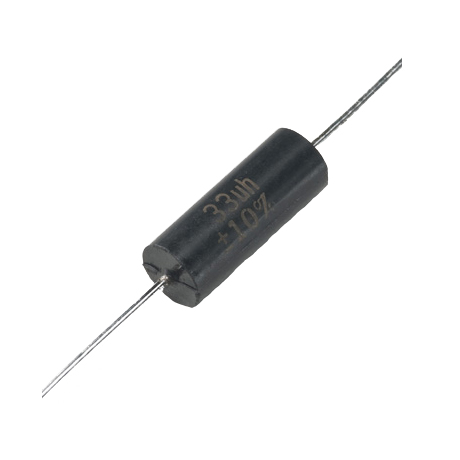

| Description: | MOLDED UNSHIELDED RF COILS AXIAL |
| Manufacturer | Gowanda |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Gowanda" |
| Tolerance | ±10% |
| Package / Case | Axial |
| Size / Dimension | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -55°C ~ 105°C |
| DC Resistance (DCR) | 17Ohm Max |
| Q @ Freq | 30 @ 790kHz |
| Frequency - Self Resonant | 10MHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 790 kHz |
| Supplier Device Package | Axial |
| Inductance | 180 µH |
| Current Rating (Amps) | 57 mA |
|
