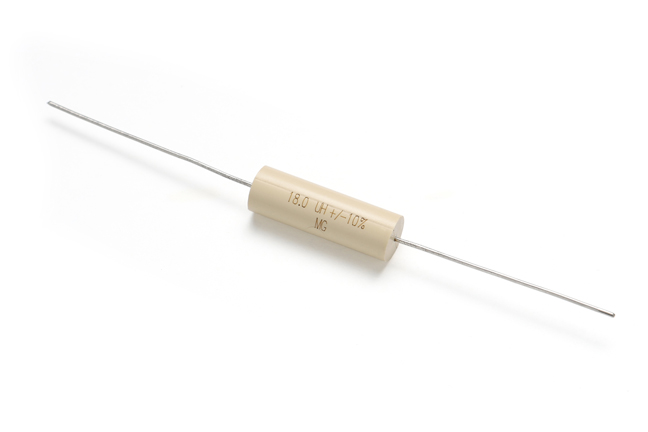

| Part number: | 28MG471K |
| Description: | MOLDED AXL NON-MAGNETIC INDUCTOR |
| Manufacturer | Gowanda |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Gowanda" |
| Tolerance | ±10% |
| Package / Case | Axial |
| Size / Dimension | 0.281" Dia x 0.900" L (7.14mm x 22.86mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 560mOhm Max |
| Q @ Freq | 60 @ 7.9MHz |
| Frequency - Self Resonant | 90MHz |
| Material - Core | Non-Magnetic |
| Inductance Frequency - Test | 7.9 MHz |
| Supplier Device Package | Axial |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 860 mA |
|
