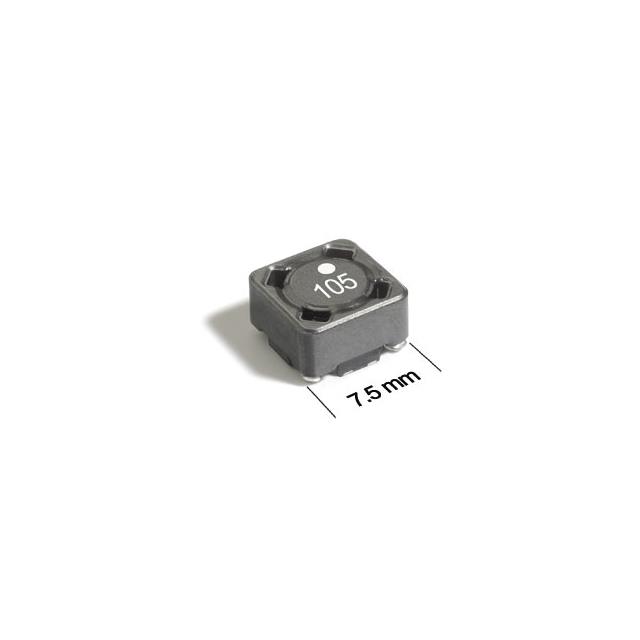

| Part number: | MSD7342-332MLC |
| Description: | FIXED IND 3.3UH 2.89A 37MOHM SM |
| Manufacturer | COILCRAFT |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.295" L x 0.295" W (7.50mm x 7.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 37mOhm Max |
| Frequency - Self Resonant | 43MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 5.2A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Inductance | 3.3 µH |
| Current Rating (Amps) | 2.89 A |
|
