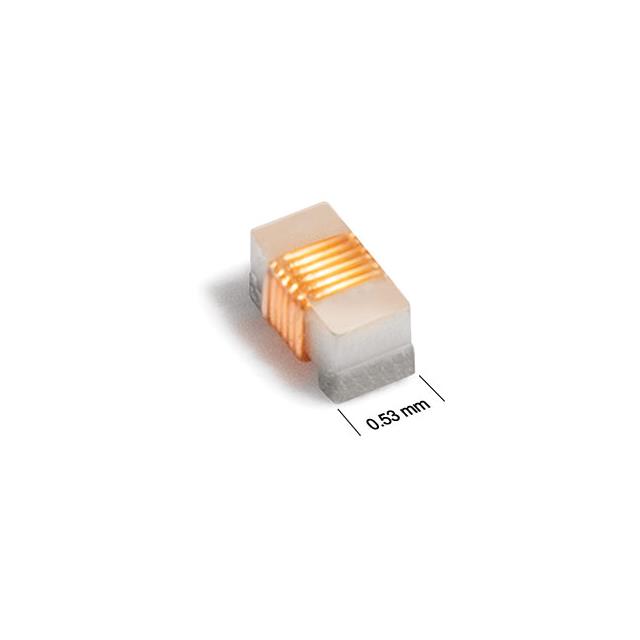

| Part number: | 0302CS-7N4XJRW |
| Description: | FIXED IND 7.4NH 690MA 112MOHM SM |
| Manufacturer | COILCRAFT |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±5% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.034" L x 0.021" W (0.86mm x 0.53mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 112mOhm Max |
| Q @ Freq | 60 @ 900MHz |
| Frequency - Self Resonant | 7.98GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 250 MHz |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Inductance | 7.4 nH |
| Current Rating (Amps) | 690 mA |
|
