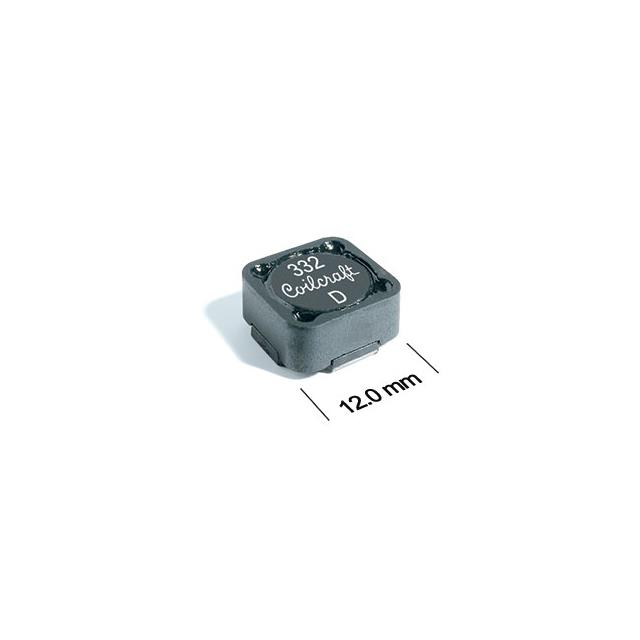

| Part number: | MSS1260-222NLD |
| Description: | FIXED IND 2.2UH 7A 12.8MOHM SM |
| Manufacturer | COILCRAFT |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 12.8mOhm Max |
| Frequency - Self Resonant | 55MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 11.7A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 7 A |
|
