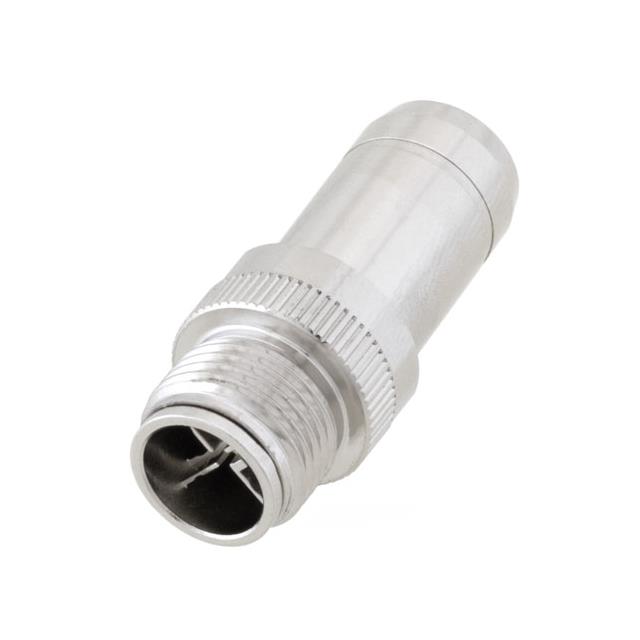

| Part number: | M128XM-MLD |
| Description: | M12 8P X-CODE MALE CONNECTOR MOL |
| Manufacturer | L-com |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "L-com" |
| Features | Backshell, Coupling Nut |
| Connector Type | Plug, Male Pins |
| Color | Silver |
| Voltage Rating | 48VAC/DC |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 8 |
| Orientation | X |
| Shell Size - Insert | M12-8 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder Cup |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Insert Material | Thermoplastic |
| Primary Material | Metal |
|
