| Part number: | CV35A200 |

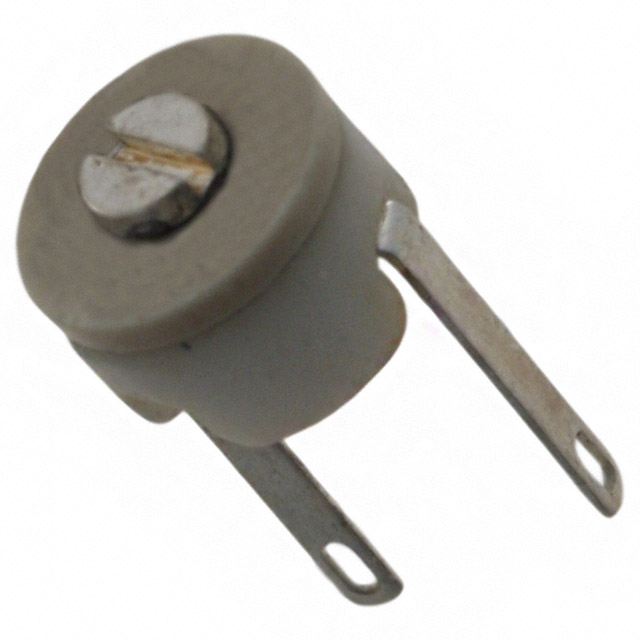

| Description: | CAP TRIMMER 3.5-20PF 100V TH |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Tusonix a Subsidiary of CTS Electronic Components" |
| Features | General Purpose |
| Adjustment Type | Top |
| Capacitance Range | 3.5 ~ 20pF |
| Size / Dimension | 0.218" Dia (5.54mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Q @ Freq | 500 @ 1MHz |
| Dielectric Material | Ceramic |
| Height - Seated (Max) | 0.145" (3.68mm) |
| Voltage - Rated | 100 V |
|
