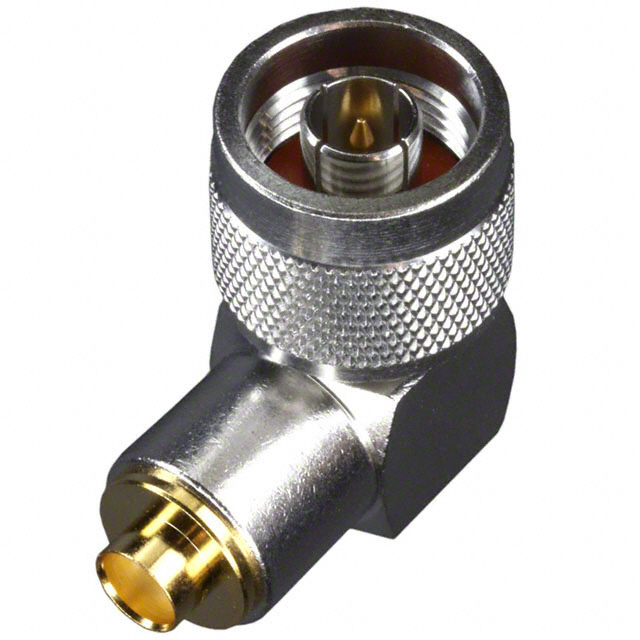

| Part number: | 172266 |
| Description: | CONN N PLUG R/A 50 OHM PUSH |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Plug, Male Pin |
| Contact Termination | Push On |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Cable Group | RG-401 (.250" Semi Rigid) |
| Operating Temperature | -65°C ~ 165°C |
| Insertion Loss | 0.15dB |
| Fastening Type | Threaded |
| Connector Style | N Type |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Shield Termination | Solder |
| Center Contact Material | Phosphor Bronze |
| Body Finish | White Bronze |
| Center Contact Plating | Gold |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Voltage Rating | 1500 V |
|
