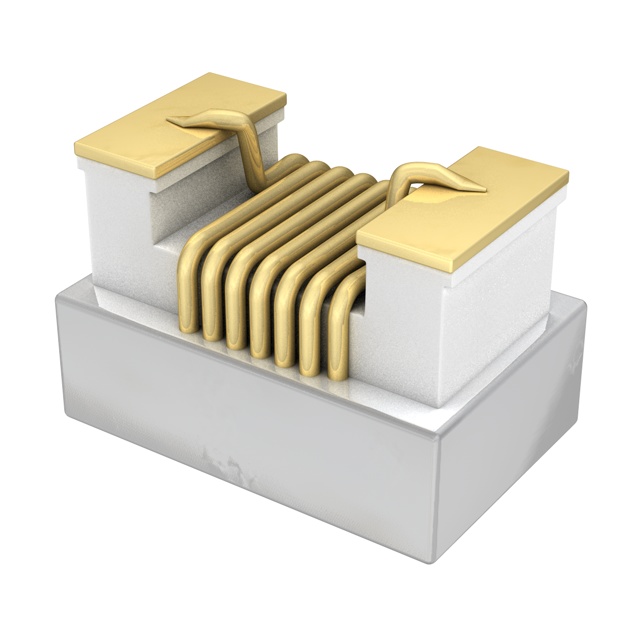

| Part number: | LRW0603WKR12GG001E |
| Description: | FIXED IND 120NH 300MA 650MOHM SM |
| Manufacturer | Johanson Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Johanson Technology" |
| Tolerance | ±10% |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.041" W (1.60mm x 1.05mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 650mOhm Max |
| Q @ Freq | 35 @ 150MHz |
| Frequency - Self Resonant | 1.3GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 250 MHz |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.049" (1.25mm) |
| Inductance | 120 nH |
| Current Rating (Amps) | 300 mA |
|
